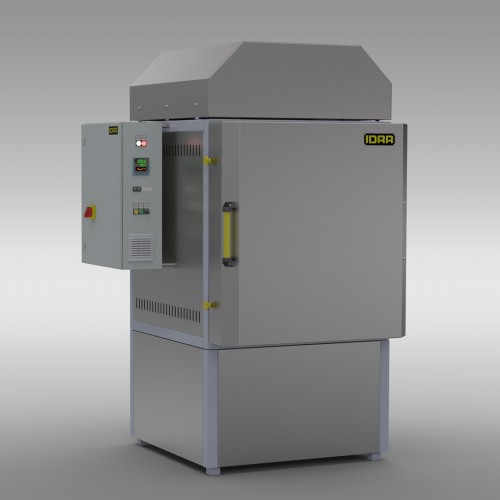

Degreasing pre-burning furnace

Maximum operating temperature 110/1300°C

Furnace chamber volume 160, 260, 360, 600, 1000L

Double shell structure with fan cooling device, low temperature outer wall of the box

Dual-system thermal field control of hot air circulation in low temperature section + heat radiation on 5 sides in high temperature section

The heating element is mounted on the support tube to ensure a long service life from the free radiation of the heating wire

The bottom heating device is secured by a silicon carbide plate on the work table

Self-supporting, strong roof structure, arch roof type

Multi-layer insulation made of lightweight firebrick and special backing material

Double wall furnace construction with rear ventilation, so the outer wall temperature is low

TCP high level touch control system

Standard base dispensing process package DBX100

The motor drives the exhaust cap

Perforated ceramic intake pipe for preheated fresh air

Description

Combined box furnaces have been developed specifically for the integration of glue extraction and sintering in a single process. Special heat field control method is adopted to ensure the excellent temperature uniformity of the two process stages of rubber discharge and sintering. The furnace is equipped with a fresh air supply device for diluting the exhaust gas during the glue discharge to prevent a combustible environment in the furnace chamber.

脱脂烧结炉-1

Additional parameters:

Multi-temperature zone temperature control device

Passive safety dispensing package DBX200

Stainless steel exhaust hood and exhaust pipe

Overtemperature protection limiter

Electric heating high temperature catalytic exhaust gas purification system

Volume
(L)

Equipment model	Maximum temperature (℃)	Furnace size mm			Overall dimensions mm			Temperature control accuracy (℃)	Connection power (Kw)	Connection voltage (V)	Heating time (min)	Equipment weight (kg)
		W	D	H		W	D	H
LMF 3/11	1100	120	200	80	3	400	500	450	1	1.5	220	90	50
LMF 5/11	1100	150	200	150	5	400	500	550	1	2.5	220	90	50
LMF 12/11	1100	200	300	200	12	450	600	600	1	4	220	90	50
LMF 20/11	1100	250	300	250	20	500	600	650	1	5	220	90	50
LMF 36/11	1100	300	400	300	36	550	650	700	1	8	380	90	50
LMF 3/13	1300	120	200	80	3	450	550	500	1	1.5	220	90	50
LMF 5/13	1300	150	200	150	5	450	550	600	1	2.5	220	90	50
LMF 12/13	1300	200	300	200	12	500	650	650	1	4	220	90	50
LMF 20/13	1300	250	300	250	20	550	650	700	1	5	220	90	50
LMF 36/13	1300	300	400	300	36	600	700	750	1	8	380	90	50
