Description

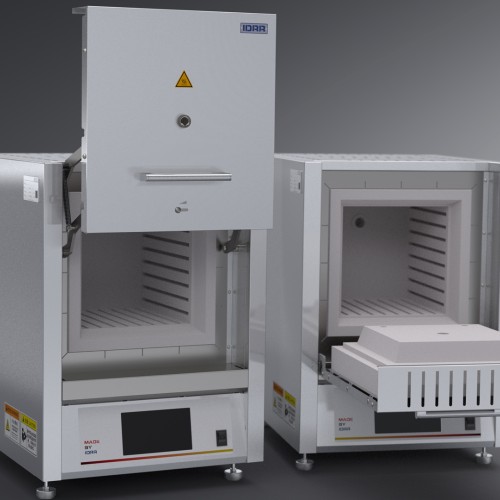

The LMF laboratory furnace is designed for light sample loads up to 1300° C for conventional use. These laboratory stoves have simple sliding doors and top-mounted ceramic chimneys. Low heat storage insulation materials and spiral heating elements embedded in the side of the furnace to freely radiate heat provide efficient heating. Color roasting effect, modern shape design and high reliability are the outstanding features of this series of furnaces.
Extra option
Observation hole mounted on the furnace door
Manual or automatic gas distribution systems
Overtemperature protection limiter
Shielding gas or reaction gas interface
Hard ceramic hearth
The top ceramic chimney emits exhaust gases
| Model | Max Temperature (°C) | Chamber Dimensions (mm) | Volume (L) | External Dimensions (mm) | Temperature Control Accuracy (°C) | Rated Power (kW) | Rated Voltage (V) | Heating Time (min) | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Width | Depth | Height | Length | Width | Depth | Height | ||||||||
| LMF 3/11 | 1100 | 120 | 200 | 80 | 3 | 400 | 500 | 450 | 1 | 1.5 | 220 | 90 | 50 | |
| LMF 5/11 | 1100 | 150 | 200 | 150 | 5 | 400 | 500 | 550 | 1 | 2.5 | 220 | 90 | 50 | |
| LMF 12/11 | 1100 | 200 | 300 | 200 | 12 | 450 | 600 | 600 | 1 | 4 | 220 | 90 | 50 | |
| LMF 36/11 | 1100 | 300 | 400 | 300 | 36 | 550 | 650 | 700 | 1 | 8 | 380 | 90 | 50 | |
| LMF 3/13 | 1300 | 120 | 200 | 80 | 3 | 450 | 550 | 500 | 1 | 1.5 | 220 | 90 | 50 | |
| LMF 5/13 | 1300 | 150 | 200 | 150 | 5 | 450 | 550 | 600 | 1 | 2.5 | 220 | 90 | 50 | |
| LMF 12/13 | 1300 | 200 | 300 | 200 | 12 | 500 | 650 | 650 | 1 | 4 | 220 | 90 | 50 | |
| LMF 20/13 | 1300 | 250 | 300 | 250 | 20 | 550 | 650 | 700 | 1 | 5 | 220 | 90 | 50 | |
| LMF 36/13 | 1300 | 300 | 400 | 300 | 36 | 600 | 700 | 750 | 1 | 8 | 380 | 90 | 50 | |
