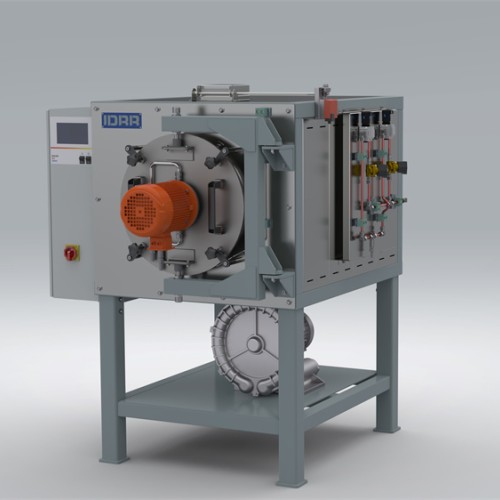

Atmosphere furnace

Atmosphere furnace

 Parameter Description Typical range/description
Temperature range conventional type: 300℃~1200℃; High temperature type: 1200℃~1800℃
Temperature control accuracy ±1℃~±5℃ (depending on sensor and controller)
Working atmosphere Nitrogen (N₂), argon (Ar), hydrogen (H₂), vacuum (<10⁻³ Pa), mixed gases (e.g. H₂/N₂)
Furnace size Laboratory type: Φ50×100mm ~ Φ200×300mm; Industrial type: customized (up to several cubic meters)
Heating rate 5℃/min ~ 30℃/min (rapid heating up to 50℃/min)
Maximum power laboratory type: 3kW~15kW; Industrial type: 30kW~200kW
Seal leakage rate: < 0.1Pa ·m³/s (higher requirements for high vacuum models)
Applicable materials metal (stainless steel, titanium alloy), ceramics, semiconductors, battery materials (such as positive and negative electrode materials)
Description
Atmosphere furnace is a kind of industrial electric furnace for high temperature heating or material treatment in a controlled atmosphere environment, by passing specific gases (such as nitrogen, hydrogen, argon, etc.) or mixed gases into the furnace, to prevent materials from oxidation, decarbonization or other harmful reactions at high temperatures, widely used in materials science, metallurgy, electronics, ceramics and new energy and other fields.



气氛炉
